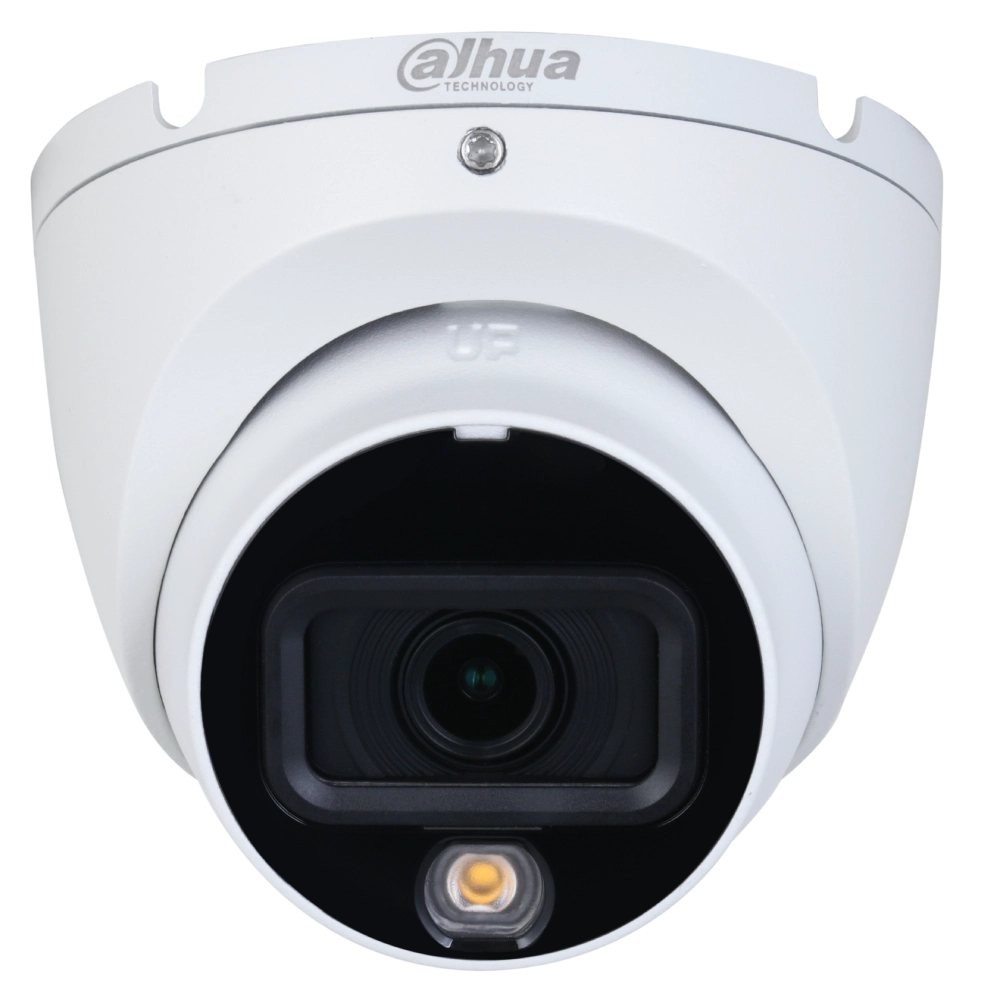

The Dahua Technology HAC-HDW1500TLMP-IL-A is a 5-megapixel Smart Dual Light HDCVI analogue surveillance camera designed for reliable, long-range video monitoring in both indoor and outdoor environments. It delivers high-resolution video with intelligent lighting and advanced image optimization technologies, while retaining compatibility with existing analog systems via HDCVI technology.
Dahua Technology HAC-HDW1500TLMP-IL-A 5MP Smart Dual Light HDCVI Eyeball Camera is a high-performance analog surveillance camera from Dahua’s Lite series, designed to deliver clear, detailed video in both day and night conditions while remaining fully compatible with existing coaxial CCTV systems. It features a 1/2.7″ 5MP CMOS sensor delivering up to 2592 × 1944 resolution at 25 fps, combined with Smart H.265+ compression to significantly reduce bandwidth and storage requirements. The fixed 3.6 mm lens (optional 2.8 mm) provides a wide field of view, making it ideal for monitoring large areas. Smart Dual Light technology integrates IR LEDs and white LEDs to automatically switch between black-and-white and full-color night vision, offering visibility up to 30 m in IR mode and up to 40 m in color mode, while the Super Adapt function optimizes exposure in challenging lighting environments. With built-in audio over coaxial cable, long-distance HDCVI transmission up to 700 m, a rugged IP67-rated metal and ABS housing, and reliable operation in extreme temperatures, this camera is a robust, cost-effective solution for residential, commercial, and outdoor security applications.
Image & Video
Image Sensor: 5 MP CMOS, progressive scan
Max. Resolution: 2880 × 1620 @ up to 25 fps
Video Formats Supported: HDCVI, CVBS, AHD, TVI (switchable via BNC)
Day/Night Mode: Auto (ICR) / Color / B/W
White Balance: Auto / Area white balance
Backlight Control: BLC / HLC / DWDR
Noise Reduction: 2D NR (some versions 3D NR)
Smart Dual Light: IR + warm white LEDs with Smart IR&WL, IR Mode, WL Mode
Lens & Optics
Lens Type: Fixed-focal
Focal Length: 3.6 mm (standard) or 2.8 mm (optional)
Max. Aperture: F1.6
Field of View:
3.6 mm: ~109° D × ~92° H × ~48° V
2.8 mm: ~125° D × ~106° H × ~56° V
Minimum Illumination:
Color: 0.05 lux @ F1.6 (30 IRE)
B/W: 0.005 lux @ F1.6 (30 IRE)
0 lux with LEDs on
Night Vision & Light
IR Distance: Up to ~20–30 m depending on mode and model specifics
Warm White LED Distance: Similar range for full-color night visuals
Audio
Audio Input: Built-in microphone with audio over coax support
Transmission & Connectivity
Video Output: Switchable CVI / TVI / AHD / CVBS via one BNC connector
Audio over Coax: Supported (single-cable audio + video)
Power & Environmental
Power Supply: 12 V DC ±30 %
Power Consumption: Max ~3.1–4.3 W (depending on LED mode)
Operating Temp.: –40 °C to +60 °C
Operating Humidity: <95 % (non-condensing)
Mechanical & Build
Housing: Metal with ABS parts (IP67 rated)
Ingress Protection: IP67 (dust/water resistant)
Mounting: Wall, ceiling, vertical pole compatible
Dimensions: ~Ø 94 × 86 mm (approx)
Net Weight: ~0.31 kg
Other Features
Super Adapt: Auto adjustments for gain/WDR/BLC/HLC in varied lighting
Privacy Masking: On/Off selectable areas
Mirror: Yes
