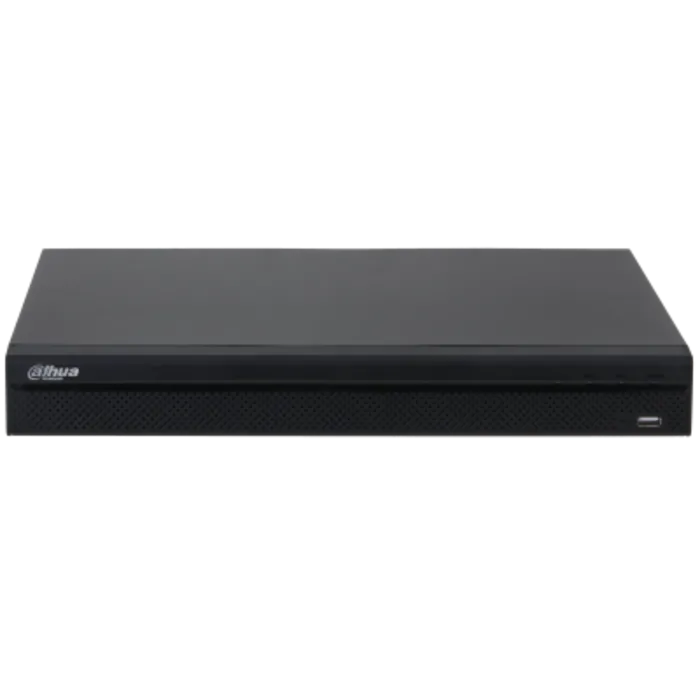

DHI‑NVR4232-16P-4KS3

Name: DHI‑NVR4232-16P-4KS3
Brand: Dahua
SKU: DHI‑NVR4232-16P-4KS3‑32CH
Price: 29000.00 KES
Availability: InStock

SKU: DHI‑NVR4232-16P-4KS3‑32CH

KSh 29,000~~KSh 31,000~~-6%

Excl. 16% VAT · KSh 33,640 incl. VAT

You save KSh 2,000

In stock · ready for dispatch

Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats.
Max. decoding capability: 8 × 1080p@30 fps or 2 × 8 MP@30 fps.
Max. 160/160/80 Mbps incoming/recording/outgoing bandwidth.
Supports IP cameras with a resolution up to 12 MP.
AI by Recorder supports 4-channel SMD Plus.

Delivery countrywideFast delivery within Nairobi · 1–3 working days to other towns via courier

Pay with M-Pesa or on deliveryNairobi customers can pay when the item arrives

Manufacturer warrantyGenuine product · 14-day returns on faulty items

Pick up in storeMontana Mall, Ground Floor, Shop No. 11

Need it installed?Certified technicians, fixed quotes.

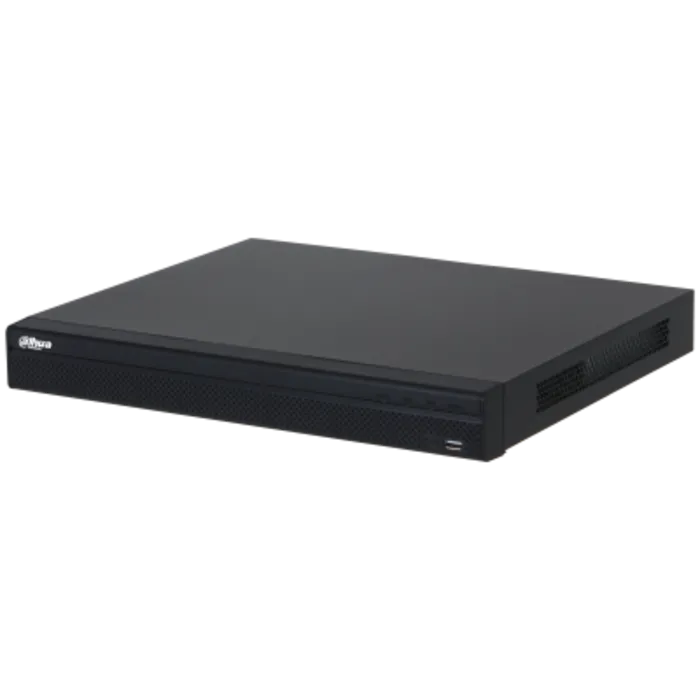

About the DHI‑NVR4232-16P-4KS3

Professional CCTV Solution for Large Homes & Businesses! Take your surveillance to the next level with the Dahua 32-channel NVR. With 16 PoE ports, dual HDD support, smart recording, and mobile access, it’s ideal for medium to large installations. Key Features:

The Dahua DHI‑NVR4232-16P-4KS3 is a 32-channel network video recorder featuring 16 PoE ports, so your IP cameras can be powered directly without extra switches. It supports up to 2 HDDs, smart AI detection, alarm notifications, and remote access via the Dahua Mobile App.

Smart H.265+ compression ensures long recording times without sacrificing video quality. The system also includes Smart Motion Detection (SMD) for intelligent alerts, reducing false alarms and keeping your property safe.

📊 Specifications

📌 Channels & PoE

32 IP camera channels
16 PoE ports (IEEE 802.3af/at, max 25.5 W per port)
Supports camera resolutions up to 12 MP

📌 Storage

2 × SATA HDD bays (up to 20 TB each)
Backup via USB or network

📌 Video & Compression

Smart H.265+, H.265, H.264, MJPEG
HDMI & VGA output, up to 4K resolution
Multi-channel playback: 1/4/8/9/16/32 layouts

📌 Smart Features

Smart Motion Detection (SMD)
AI alarm notifications (face, perimeter, people counting with compatible cameras)
Remote monitoring via Dahua Mobile App (iOS & Android)

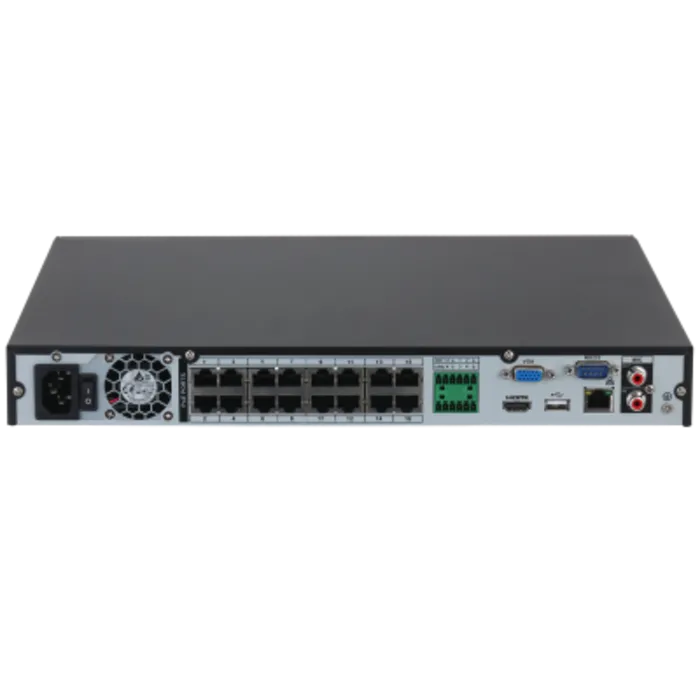

📌 Network & Connectivity

1 × RJ‑45 1 GbE management port
16 PoE ports for cameras
Audio in/out, 2 × USB 2.0

📌 Physical

1U rackmount design
Power: 12 V DC
Dimensions: ~451 ×147 ×425mm

Specifications

Brand	Dahua
Processor	Industrial-grade
OS	Embedded Linux
Interface	Web & Local GUI
AI by Recorder	SMD Plus (2 channels for human & vehicle)
AI by Camera	Face detection & recognition, perimeter protection, SMD Plus, people counting, stereo analysis, heat map
Face Detection/Recognition	Up to 6 channels, 6 targets/sec
Perimeter Protection	6 channels
SMD by Camera	All channels, 12 targets/sec
Access Channels	32
Resolutions	12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p, 960p, D1, CIF, QCIF
Decoding	AI disabled: up to 1 × 12 MP@30fps, 8 × 1080p@30fps; AI enabled: reduced channels for high-res streams
Compression	Smart H.265+, H.265, Smart H.264+, H.264
Audio	1 × RCA input, 1 × RCA output, G.711a/u, PCM, G726
HDMI	Up to 3840×2160 (4K)
VGA	Up to 1920×1080
Multi-screen Display	1/4/8/9/16 main, sub screens adjustable
Playback	Up to 16 channels simultaneously
Record Modes	General, motion, intelligent, alarm
Backup	USB & network
Smart Playback	Instant, event, tag playback
Disk Interface	2 × SATA (up to 20 TB each)
Disk Groups	Supported
Network Port	1 × RJ-45 10/100/1000 Mbps
PoE Ports	16 × 10/100 Mbps, 25.5W max per port, 130W total
Remote Access	iOS/Android DMSS, web browser
Third-party Cameras	ONVIF, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Hanwha
General	Motion, privacy mask, video loss, PIR, IPC external alarm
Intelligent	Face detection & recognition, perimeter protection, SMD Plus, people counting, stereo analysis, heat map
Alarm Linkage	Record, snapshot, external alarm, audio, buzzer, log, preset, email
Power Supply	100–240 VAC, 50/60 Hz
NVR Power	<10W (without HDD)
PoE Total Power	130W
Weight	2.6 kg (net), 3.8 kg (gross)
Dimensions	375 × 327.9 × 53 mm (W×D×H)
Operating Temp	–10°C to 55°C
Storage Temp	–20°C to 60°C
Humidity	10–93% RH non-condensing
