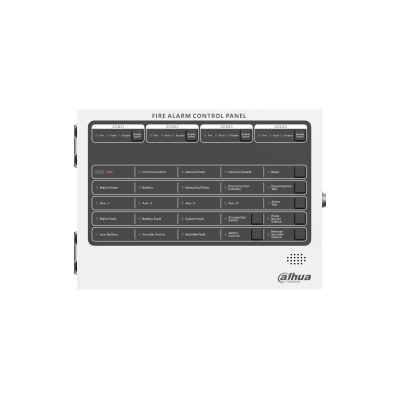

DHI-HY-C102-4 Conventional Fire Alarm Control Panel is designed and
manufactured in compliance with EN54 Parts 2 & 4 requirements. As
the core of conventional fire alarm system, it cooperates with smoke
detectors, heat detectors, sounder strobes, and manual call points
to construct a fire alarm control system. With Ethernet, RS-485, and
other IoT interfaces, it can integrate with other panels and connect to
platforms.
· 90VAC to 270VAC main power supply ensures the stable operation
· 4 ZONE UPTO 32 detector contacts make connection flexible
· Ethernet interfaces enables communication with IoT platform
· RS-485 interface contributes to convenient integration
· Record and export capacity of historical events for each of fire, fault
and operation
Technical Specification
Number of Zones 4
Zone Capacity 32 detectors per zone
Main Power AC90-240V/50Hz, 60Hz
Backup Power 2 lead-acid batteries (12V/2.5Ah each)
Output Current 2A
Sounder Output Fault: 50dB
Alarm: 60dB
Fire Bell Output DC 28V/500mA
Dimensions 310.0 mm×73.0 mm×227.0 mm (12.20" × 2.87" × 8.94")
Weight 3.5 kg
5 kg (with 2 batteries)
Operating Temperature –10°C to +50°C (+14°F to +122°F)
Operating Humidity ≤ 95% RH (no condensation)
Protection Grade IP30
Installation Wall mount
Compliance Standard EN54-2,EN54-4
