DHI-IPC‑HFW2849M‑S‑B‑PRO 8 MP WIZCOLOR

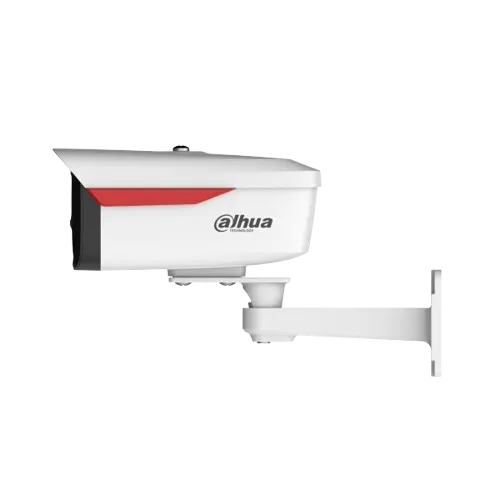

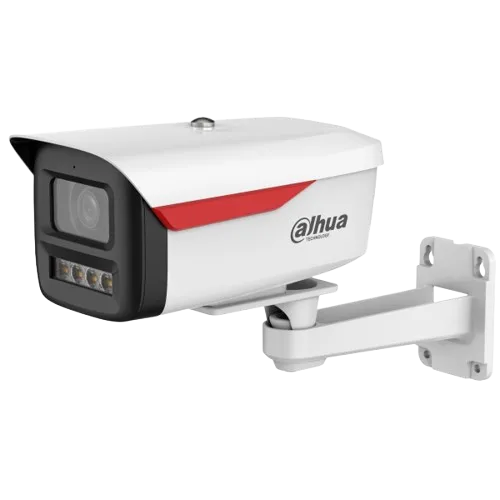

DAHUA IPC‑HFW2849M‑S‑B‑PRO 8 MP WIZCOLOR BULLET IP CAMERA – DETAILED DESCRIPTION

The Dahua IPC‑HFW2849M‑S‑B‑PRO is a high-performance 8 MP network bullet camera designed for professional outdoor and indoor surveillance. Leveraging WizColor technology, this camera provides vivid, full-color images even in near-dark conditions, making it ideal for areas where color detail at night is critical. The camera integrates AI-based video analytics through Dahua’s WizSense platform, enabling advanced security monitoring such as human and vehicle detection, perimeter protection, and intrusion alerts.

Equipped with a high-sensitivity 1/1.8" CMOS sensor, it delivers a maximum resolution of 3840 × 2160 at up to 20 frames per second, ensuring sharp, clear, and detailed images. The camera features a motorized varifocal lens (2.7–13.5 mm), providing flexibility in field of view from narrow to wide coverage, suitable for entrances, parking lots, building perimeters, and other critical areas.

For night-time monitoring, the camera uses WizColor warm light technology, capable of illuminating objects up to 50 meters away in full color, far surpassing conventional IR night vision cameras. Additionally, the built-in microphone allows audio recording, which is useful for areas requiring sound monitoring alongside video surveillance.

The IPC‑HFW2849M‑S‑B‑PRO supports Smart H.265+ compression, reducing bandwidth and storage requirements while maintaining video clarity. It is ONVIF compliant, ensuring interoperability with third-party NVRs, software platforms, and IP-based security systems. Network features include PoE support (802.3af) for simplified installation and reduced cabling, as well as optional 12 V DC power input.

Durability is a key strength: the camera is housed in a rugged IP67-rated enclosure, making it fully resistant to dust, rain, and harsh weather conditions. It operates in a wide temperature range, ensuring reliable performance in most climates.

Key AI and Smart Features

• SMD Plus (Smart Motion Detection): Differentiates humans and vehicles from other moving objects to reduce false alarms.

• Perimeter Protection: Detects intrusions in defined areas such as fences, gates, or restricted zones.

• Tripwire / Intrusion Detection: Sends instant alerts when objects cross predefined boundaries.

• Tamper Detection: Alerts when the camera is blocked, defocused, or moved.

Video & Imaging

• Maximum Resolution: 8 MP (3840 × 2160) @ 20 fps

• Lens: Motorized 2.7–13.5 mm varifocal, adjustable via software

• Field of View (H): Approximately 102°–31°

• Wide Dynamic Range (WDR): 120 dB, providing balanced images in high-contrast environments

• Noise Reduction: 3D-DNR for cleaner images in low-light scenarios

• IR Range / Warm Light: Up to 50 m for night monitoring

Connectivity & Network

• Video Compression: H.265+, H.265, H.264+, H.264

• ONVIF Compliance: Ensures interoperability with most NVRs

• Ethernet Port: 10/100 Mbps, PoE support

• MicroSD Slot: Up to 256 GB for local recording

Installation & Build

• Mount Type: Wall or ceiling mount (mounting template included)

• Housing: IP67 weatherproof for outdoor use

• Operating Temperature: -30 °C to +60 °C

• Power Supply: 12 V DC or PoE (802.3af)

Use Cases

• Outdoor surveillance for commercial, industrial, or residential properties

• Retail store entrances and perimeters

• Parking lots, driveways, and road surveillance

• Security-sensitive locations requiring full-color night vision
