IPCOM F1118P-16-150W 16P0RT POE IP-COM

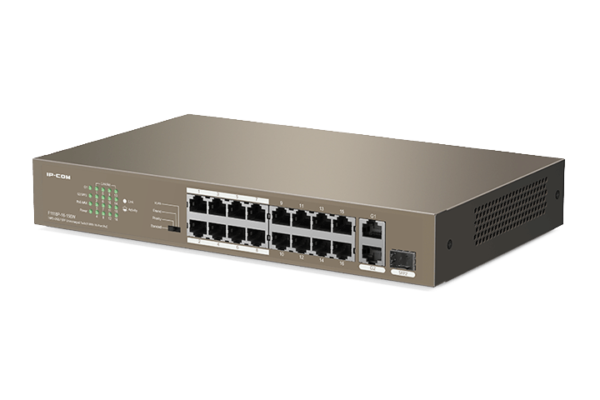

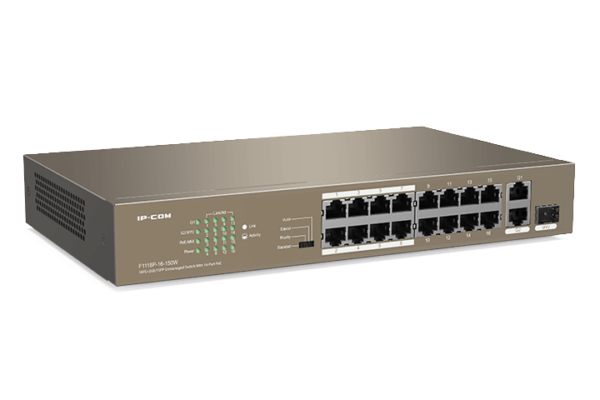

F1118P-16-150W    Overview

F1118P-16-150W is a unmanaged PoE switch independently designed by IP-COM. Compliant with IEEE 802.3af and IEEE 802.3at standards, it can identify PoE-powered devices intelligently. With a maximum PoE power output of 130 W, and 30 W for a single port, it can supply power when transmitting data with APs, IP cameras, and IP phones. The switch supports 4 working modes, including standard, priority, extend and VLAN modes, is an ideal choice for SMBs, hotels, schools, factories with video surveillance and wireless networking requirements.

6 kV lightning protection

The switch offers various safety and protection types, including 6 kV lightning protection, PSE short-circuit protection, PoE overload protection, surge current protection etc.

Gigabit uplink port

With one 1000 Mbps combo SFP slot, the switch can meet the current demand for uplink bandwidth of Gigabit WLAN and HD digital surveillance.

130 W PoE power supply

The switch features 16 IEEE 802.3at/af-compliant RJ45 ports. The entire switch offers a maximum PoE power output of 130 W, and 30 W for a single port, to supply power to and data transmission with 16 PoE-powered devices such as APs and IP cameras.

One-key to switch 4 modes

It supports 4 working modes, including standard, priority, extend and VLAN modes. The hardware DIP mode switch makes networking straightforward and effortless.

Product Specifications:

. Standards: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3af

. LEDs indicator: 16 * Link/Act LEDs
1 * G1 LED
1 * G2/SFP2 LED
1 * PoE-MAX LED
1 * Power LED
16 * 10/100 Mbps Base-TX RJ45 ports (Data/Power)
2 * 10/100/1000 Mbps Base-T RJ45 ports (Data)
1 * 1000 Mbps Base-X SFP port (Combo)

. Forwarding Rates: 5.36 Mpps

. Switching capacity: 7.2 Gbps

. MAC Address Table: 4K

. Lightning protection: ≥6KV

. Input voltage: AC: 100-240V~50/60Hz

. PoE supply: Ports 1-16 support standard IEEE802.3af/at
30W output per PoE port
130W output of the total PoE Power

. Power consumption: 150W output the whole device

. Dimensions: 294*178.8*44mm

. Four Modes: Standard: Default mode of the switch. In this mode, it works as an unmanaged switch; all ports can communicate with each other separately.
Priority: In this mode, port G1 and G2/SFP2 serve as uplink ports, ports 1 ‒ 8 serve as high priority port.
All ports can communicate with each other separately.
Extend: In this mode, data rate of ports 9 - 16 reduces to 10 Mbps, the maximum transmission
distance can be 250 meters, and all ports can communicate with each other.
VLAN: In this mode, ports 1 - 16 of the switch can communicate with port G1, G2/SFP2 separately,
but cannot communicate with each other. You can enable this mode to reduce broadcast
storm and isolate DHCP broadcast.

. Environment: Operating Temperature: 0℃~45℃ (32℉~113℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

. Certifications: CCC、FCC、CE、RoHS
