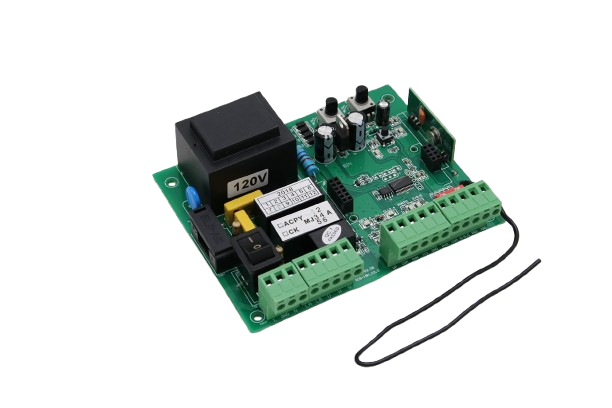

Compact, rugged, and versatile, this PCB is intended for swing gate automation. It supports both 12V and 24V configurations. Key features include automatic or timed closing (“autoclose”), safety beam input, pedestrian opening mode, local test button, free‑exit, holiday lock‑out, and diagnostic LEDs. It’s made to be installed inside gate motor housing, shielded from the elements, and to offer long‑term stable performance in typical outdoor gate setups.
The CP77 Swing Gate PCB (also known as CP77 / CP77 PSU Swing, part number GA22‑7) is a digital controller board designed for Centurion swing gate motors. It manages all the control logic: interpreting remote / trigger signals, handling safety inputs (e.g. photocells / safety beams), controlling the motor, timing (auto‑close), status indication via LEDs, and providing several auxiliary inputs / outputs. The unit is built for reliability with features like lightning protection and noise immunity, suitable for residential or light‑industrial swing gate applications.
| Feature | Description |
|---|---|
| Model / Type | CP77 – DC Swing Gate Motor Controller (Part No. GA22 / GA22‑7) SecureRite+2saundersonsecurity.co.za+2 |
| Voltage Variants | Available in 12 V DC and 24 V DC versions. Quick SA+1 |
| Motor Type Compatible | Geared for swing gate operations; supports various swing gate motors. Can often be used with sliding motors too depending on setup. Quick SA+1 |
| Inputs / Controls | Trigger input (remote / push‑button), photocell / safety beam input, free‑exit input, pedestrian opening input, holiday lock‑out. Quick SA+1 |
| Outputs / Indicators | Gate status LEDs (local & remote), local test button, diagnostic LEDs. Possibly auxiliary contacts / timed relay outputs (courtesy lights etc.). Quick SA+1 |
| Auto‑Close | Adjustable auto‑close timer (e.g. 5‑45 seconds) after opening. Quick SA+1 |
| Safety Features | Photocell / safety beam input, pedestrian opening mode (for partial opening), free‑exit, high immunity to electrical noise and lightning protection. Quick SA+1 |
| Environmental / Build | Robust design, protections against spikes/lightning, ability to operate in electrically noisy environments. Sealed enough for placement in motor housing. Quick SA+1 |
| Physical / Other | Moderate weight (~0.2 kg for CP77 module) for the PCB it |
