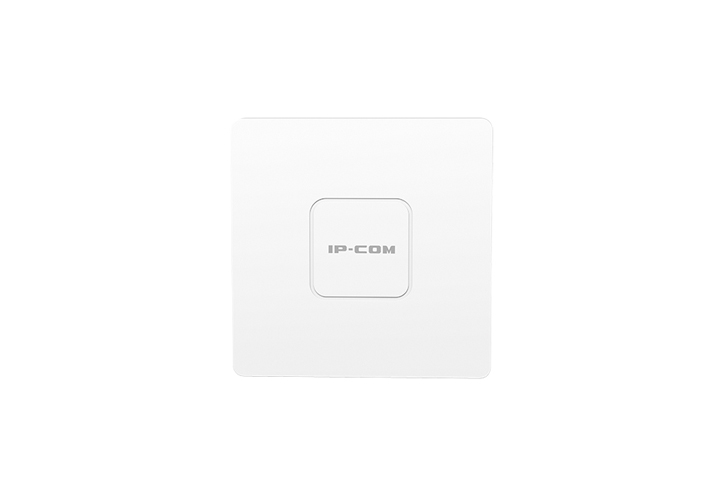

IPCOM W63AP AC1200 GIGABIT ACCCESS POINT IP-COM

Product Features:

. Gigabit internet connections for ultra-fast experience:

Up to 1167 Mbps dual-band data rate, and the Gigabit Ethernet port offers you
ultra-fast internet connections.

. IEEE 802.11ac Wave 2 and MU-MIMO:
Compliant with IEEE 802.11ac Wave 2 and powered by MU-MIMO technology, a
single W63AP can communicate with multiple wireless clients simultaneously,
leading to higher throughput.

. 2.4 GHz and 5 GHz bands for more connected clients:
The dual-band wireless design allows clients that support 2.4 GHz and/or 5 GHz
bands to connect to the AP at the same time, tripling the quantity of connected clients
of traditional single-band AP.
. Built-in omni-directional antennas:
With the optimized built-in high-gain omni-directional antennas, W63AP outperforms in radiating wireless signals, and greatly broadens its wireless coverage.
. Built-in RF optimization:
W63AP supports RF optimization technology and integrates with various algorithms
for interference mitigation. Features include multi-user fairness, interference
filtering, speed optimization, and signal strength guarantee.
. VLAN tagging for SSID:
W63AP allows you to set multiple SSIDs, and the IEEE 802.11q VLAN-compliant
feature enables you to add VLAN tags for SSIDs, thus protecting the security of your
network.
. Standard PoE sourcing and DC power supply for easy deployment:
W63AP can be powered by PoE sourcing equipment that compliant with IEEE
802.3at, as well as the power adapter.
. Centralized management:
W63AP can be centrally managed and configured through all IP-COM access
controllers (AC) and enterprise routers that includes AC functionality, relieving the
burdens of network administrators for management, configuration and monitoring of
all access points.

Specifications:

Product Information:

. Model: W63AP

. Appearance: Ceiling

. Dimensions: 178 mm * 178 mm * 38 mm

Hardware Specifications:

. Frequency band: 2.4 GHz, 5 GHz

. Wireless standards: IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac

. 2.4 GHz data rate: 1 - 300 Mbps

. 5 GHz data rate 6 - 867 Mbps
. Ethernet port: 1*10/100/1000 Base-TX port
. Button: 1*Reset
. LED indicator: 1*Power
. Max. power consumption: Full-load 13.5W
. Power supply standard: IEEE 802.3at

Software Specification:

. Operating modes: AP, Client + AP
. Hide SSID: Supported
. Max. No. of SSID: 2.4 GHz: 8, 5 GHz: 4
. Max. connected clients: 2.4 GHz: 128, 5 GHz: 128
. WEP: Supported

. WPA-PSK: AES/TKIP
. WPA2-PSK: AES/TKIP
. WPA: Supported

. Access control: MAC address-based
. Adjustable power transmit: Supported
. Frequency analysis:  Supported ported

. AP isolation: Supported

. Connected clients: control Supported

. RSSI threshold: Supported
. WMM: Supported
. VLAN tagging for SSID: Supported

. Antenna gain: 4 dBi
. 2.4 GHz max. output power: 23 +/- 1.5 dBm
. 5 GHz max. output power: 23 +/-1.5 dBm
. 802.11b RX sensitivity: -93 dBm
. 2.4 GHz 802.11n (MCS7) RX sensitivity: -72 dBm
. 5 GHz 802.11a RX sensitivity: -93 dBm
. 5 GHz 802.11n (MCS7) RX sensitivity: -74 dBm
. LED indicator control: Supported

. Diagnostics tool: Ping, Traceroute

. Scheduled reboot: Supported

. Reboot at specified interval: Supported

. Management: Web UI

. System logs: Supported
. Firmware upgrade: Local and AC upgrade
. Reboot: Local and AC reboot
. Reset: Local and AC reset
. Backup configuration: Supported
. Restore configuration: Supported
