IPCOM G1110PF-8-120W

G1110PF-8-120W    Overview

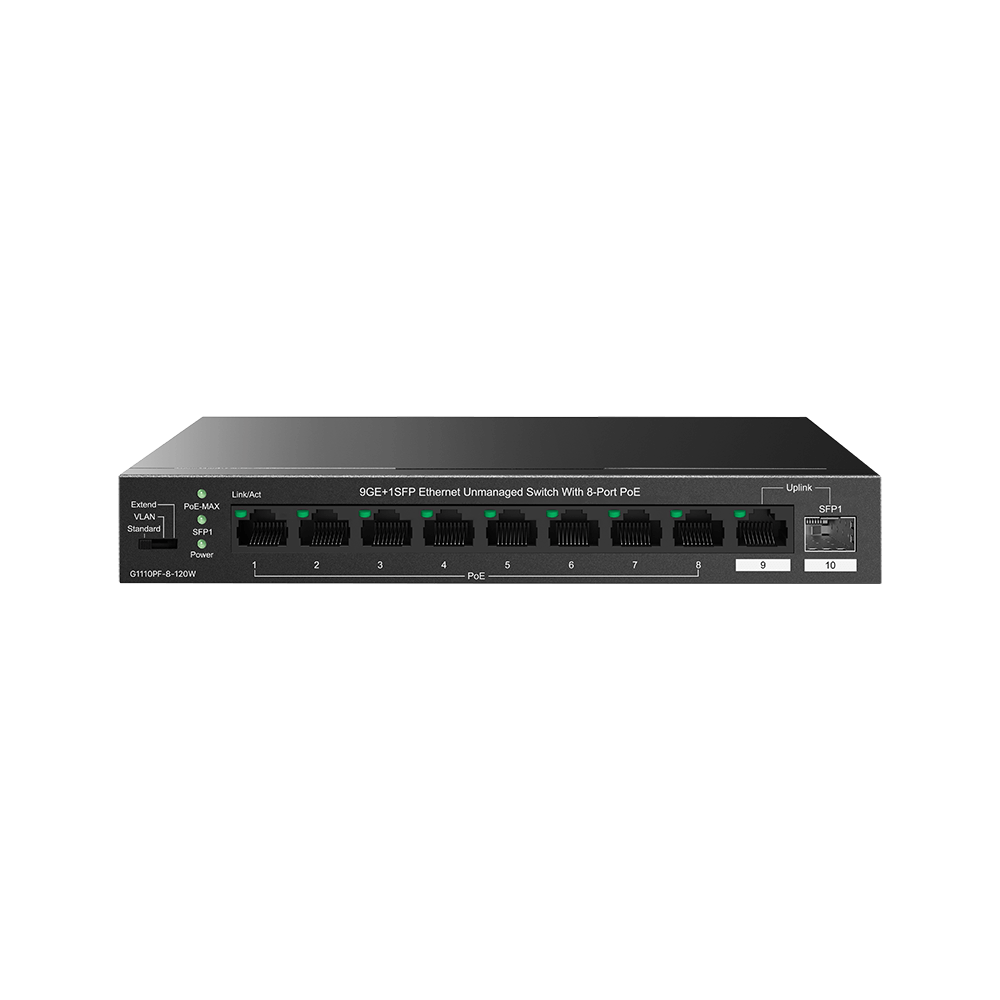

G1110PF-8-120W, 9GE+1SFP Ethernet unmanaged switch with 8-port PoE, is independently designed by IP-COM. It supports IEEE 802.3af/at standards for PoE power supply, capable of transmitting data and supplying power for 8 HD PoE cameras or gigabit APs. The maximum PoE output of a single port is 30W and the total power consumption of the switch is 120W.Supporting three-mode toggle, G1110PF-8-120W is suitable for complex networking deployment and is your ideal choice for video surveillance and gigabit wireless networking in such scenarios as SMEs, residential areas, industrial parks, hotels and schools.

Three-Mode Toggle

The switch supports 3 working modes of Standard, VLAN and Extend realizing flexible network deployment in complex cases with lowered cost.

6 KV Lightning Protection

The switch supports 6 kV lightning protection for ports and the power supply, reducing the risk of inductive lightning and ensuring stable operation even under thunderstorms.

Smart PoE Power Supply

The switch provides 8 gigabit PoE ports compliant with IEEE 802.3af/at standards, capable of transmitting data and supplying power for HD PoE cameras or gigabit APs. The maximum PoE output of a single port is 30W and the total power consumption of the switch is 120W.

RJ45 & SFP Uplink Ports

The switch supports both RJ45 and SFP uplink ports for flexible networking, with no need for cascading in scenarios of long-range transmission.

Product Features:

. Model: G1110PF-8-120W

Hardware Specifications

. Network Standards: IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3x、IEEE 802.3af、
IEEE 802.3at
.(MTBF): ≥100,000 hours

. LED Indicators: One Link/Act LED indicator for each port
One PoE-MAX LED indicator for each device
One Power LED indicator for each device
. Ports: 8 * 10/100/1000 Mbps Base-T Ethernet ports (Data/Power)
1 * 10/100/1000 Mbps Base-T Ethernet port (Data)
1 * 100/1000 Mbps Base-X SFP port
. Lightning Protection : ≥6 kV
. Switching g Mode: Store-and-forward

. Switching Capacity : 20 Gbps
. Forwarding Rate: 14.9 Mpps
. MAC Address Table: 8 K

. PoE Power Supply: IEEE 802.3af/at standards PoE power supply on ports 1-8 Voltage of cores 1, 2 is +, and cores 3, 6
. Input Voltage: 100-240V AC,50/60Hz
. Dimensions (L*W*H): 177.5mm*104.0mm*26.0mm

. Power Consumption: Total power consumption: <120 W Maximum PoE output: 110 W

. Three-Mode Toggle: Three-mode toggle through one DIP switch:
1. Standard: Default mode. In this mode, all ports can communicate with
each other.
2. VLAN: In this mode, ports 1 - 8 are isolated from each other, but all of
them can communicate with port 9 and SFP1. This mode helps isolate
DHCP broadcast and reduce broadcast storm.
3. Extend: In this mode, ports 1 - 8 decrease to 10 Mbps in negotiation rate,
but transmit up to 250 m in distance. All ports can communicate with each
other.
