IPCOM W36AP AC1200 Dual Band Gigabit In-Wall Access Point IP-COME

Product Features:

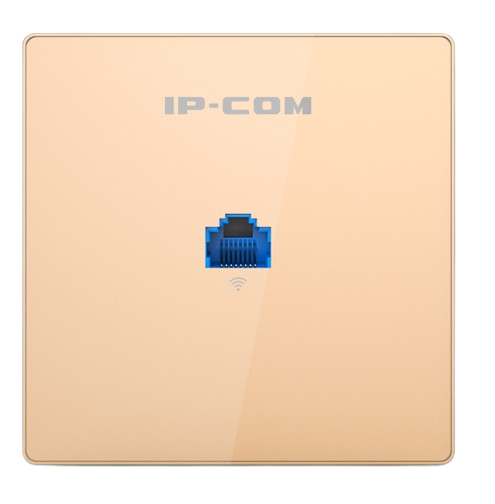

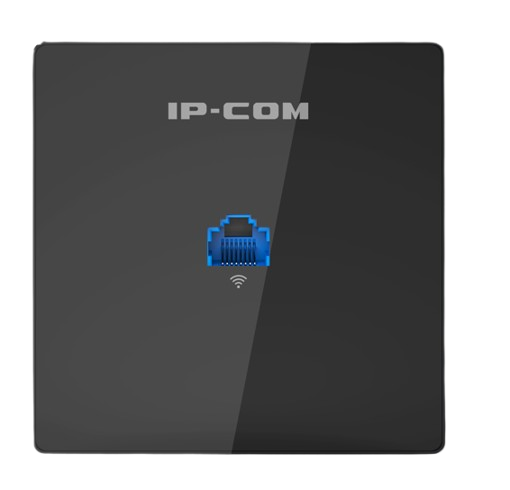

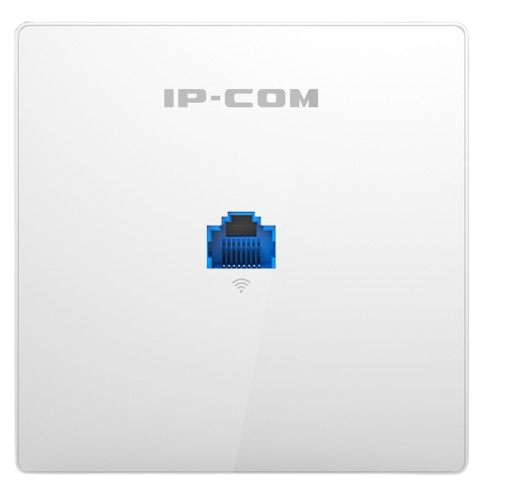

. Colorful panel pastes, a perfect match for the installation environment:
Multicolor panel decals make the AP go well with the installation environment.
. Standard 86 mm x 86 mm design for easy installation:
The standard 86 mm x 86 mm design and elegant appearance make the AP go well
with various interior decoration.

. Complaint with IEEE 802.11ac and WAVE2.0:
Featured with the MU-MIMO technology, a single AP can communicate with
multiple wireless terminals at the same time, significantly improving the throughput
of multi-user concurrency and enhancing user experience.

. Built-in omni-directional antennas.
With the optimized built-in high-gain omni-directional antennas, W63AP outperforms in radiating wireless signals, and greatly broadens its wireless coverage.

. 2.4 GHz and 5 GHz concurrency for a higher capacity:
With both pure 5 GHz band with less interference and 2.4 GHz band with stronger
compatibility and longer transmission distance, the AP allows 2.4 GHz and 5 GHz
wireless terminals to access at the same time, ensuring more wireless clients to
access. The single AP has more than three times capacity of the traditional single
band AP.
. Spectrum navigation (5 GHz priority), an escort for network performance:
The AP intelligently enables the wireless clients to connect to 5 GHz wireless
network in priority, ensuring load balancing at dual bands and improving the wireless
performance.
. Precise RF signal optimization, a guarantee of 2-room WiFi coverage without dead zone:
With the independent RF chip, the AP separates the power supply part and WiFi
signal processing part, completely avoiding the interference of the power magnetic
field on the WiFi signal. Boosted by the high-performance antenna, the AP can
cover two side-by-side hotel rooms with full WiFi.

. Standard PoE power supply, an assurance of easy AP upgrade and installation:
The AP can be powered by the PoE devices. With an Ethernet cable, the AP can be
powered and transmit data at the same time. The maximum power supply distance
of up to 100 meters enables the AP to be installed easily in hotels or your houses
without breaking the existing power line layout.

. Supporting unified configuration and management:
The AP supports the unified management and configuration of IP-COM ACs and
enterprise routers, enabling the network administrators to manage, configure and
monitor all APs conveniently.

Product Information:

. Model: W36AP
. Product Appearance: In-wall access point
. Product Dimension: 86mm* 86mm* 32 mm
. Application Scenarios: WiFi coverage for large-sized apartments/villas/hotel rooms

Hardware Specifications:

. Working Frequency Band: 2.400-2.4835 GHz, 5.15 0 -5.250 GHz

. Wireless Protocol Standard: IEEE 802.11a/b/g/n/ac

. 2.4 GHz Access Rate: 1-300Mbps
. 5 GHz Access Rate: 6-867Mbps
. 2.4 GHz Maximum Connections: 128
. 5 GHz Maximum Connections: 128
. Ethernet Port: 2 10/100/1000 Base TX ports
. Reset Button: 1 reset button
. LED Indicators: 1 x SYS LED indicator and 1 x LAN LED indicator
. Power Consumption of the Whole Device: Full load 7.8 W
. Power Supply Mode: IEEE 802.3af
. 2.4 GHz Antenna Gain: 4 dBi
. 5 GHz Antenna Gain: 4 dBi
. 2.4 GHz Output Power: 20+/-1.5 dBm
. 5 GHz Output Power: 16+/-1.5 dBm

. 11b 1 Mbps Received Sensitivity: -95 dBm
. 11n MCS7 Received Sensitivity: -73 dBm
. 11a 6 Mbps Received Sensitivity:  -93 dBm
. 11ac MCS7 Received Sensitivity: -75 dBm

Hardware Specifications:

. Operating Mode: AP, Client + AP
. SSID Hide: Supported
. 2.4 GHz SSID Number: 8
. 5 GHz SSID Number: 4
. Chinese SSID: Supported
